Vörunúmer: 7-ALFRA41250

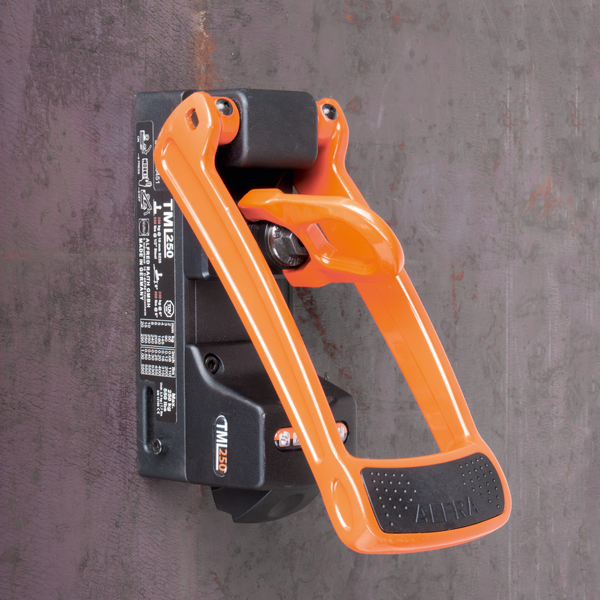

Segull TML 250

Thanks to patented magnet technology, you can lift safely and comfortably with the TML 250. The name: TML (Thin Material Lifting). There’s a wide range of application possibilities in these three letters. For example, the lifting magnet is showing an excellent performance on thin-walled materials.

On materials from a thickness of 3 mm, the holding force is already 90 kg (for uncoated and stainless steels). From a thickness of ten millimeters, the TML 250 is convincing with a load capacity of 250 kg – with a triple safety factor.

Nánar á heimasíðu framleiðanda

Framleiðandi Alfra

Akureyri

Uppselt

Hafnarfjörður

Uppselt

Senda fyrirspurn

And with a dead weight of 3.5 kg, the magnet is up to 70 percent lighter than conventional permanent magnets with a comparable performance.

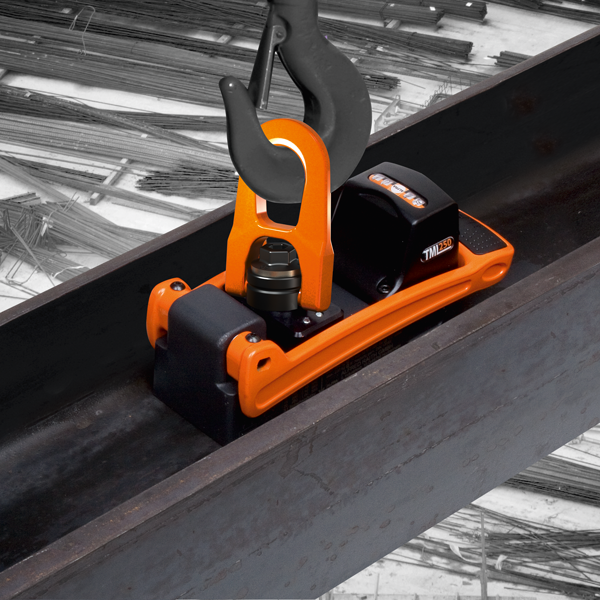

Like all Alfra products, this versatile helper in metal working, on building sites or in shipyards is particularly user-friendly: Activate the TML 250 by means of a practical one-hand operation inside a T-beam and connect the 360° rotating load swivel with your crane, ceiling crane or hoist - for example by means of a hook with safety flap or a load loop.

Thanks to the resistant magnetic surface with TiN coating, theTML 250 is extremely robust.

Prod.-No.: 41250
Max. load-bearing capacity: 250 kg - (550 lbs)
Breakaway force: > 750 kg - (1,653 lbs) - on 10 mm (3/8"") steel S235 - ab 10 mm Stahl S235
Min. material thickness: 2 mm - (1/16“)
Dead weight: 3,5 kg
Dimensions LxW 191 x 71 mm - (7-1/2"" x 2 -13/16"")
